Engineering Guide to Optical Sensor Packaging

Optical sensor packaging sits at the intersection of electronics and optics, ensuring that delicate sensor devices can reliably receive light signals while being protected from environmental and mechanical stresses. In essence, packaging an optical sensor means creating a miniature optical system around the sensor chip – one that preserves image quality, aligns lenses and filters precisely, and shields the sensor from dust, moisture, and damage.

Key principles include maintaining a clear optical path (no obscuration or contamination of the sensor’s active area), achieving precise alignment of optical elements, and using materials that support both optical performance and reliability over time. The package must hold lenses, filters, and the sensor at the correct distances and angles, all while surviving processes like PCB assembly and harsh operating conditions. In short, a well-engineered optical sensor package enables the sensor to convert photons to meaningful data with minimal distortion or signal loss, and to do so consistently throughout the product’s lifetime.

Optical sensor packaging is crucial for both performance and durability. A tiny misalignment or particle can blur an image or skew a measurement. Likewise, inadequate protection can lead to fogging, damage from shocks, or temperature-induced focus shifts. Thus, engineers must balance optical requirements (like focus and field of view) with mechanical and environmental constraints.

_{Example Optical electro mechanical system}

Successful designs often draw from  opto-mechanical engineering best practices – for example, using low-outgassing adhesives to avoid lens contamination, incorporating O-rings or sealants to block humidity, and choosing structural materials that minimize thermal expansion mismatch. As we delve deeper, we’ll explore how sensors work and how to integrate and protect them within an optical stack, covering everything from lens alignment to heat dissipation.

How Optical Sensors Work (Photons to Electrons)

Optical sensors operate by converting incoming photons into electrical signals. In a typical solid-state image sensor, each pixel consists of a photodiode (essentially a tiny silicon solar cell) and associated circuitry. When light (photons) hits the photodiode, it generates electron-hole pairs; the resulting electrons are accumulated as an electric charge in a capacitor or well.

The sensor’s readout electronics measure this charge (or the voltage change on a capacitor) to determine the light intensity at each pixel. In this way, the sensor produces a digital image or measurement that corresponds to the optical input. Many modern sensors use CMOS technology where each pixel has its own transistor amplifiers and readout, enabling low power and integration of additional functions on the chip.

The way sensors convert photons to electrons has direct implications for packaging. For example, the silicon photodiodes are sensitive to a range of wavelengths – typically extending into infrared (IR) beyond human vision. This is why most camera sensors require an IR-cut filter in the package to block unwanted IR light that would otherwise corrupt color balance. Additionally, the microlenses and color filters on the sensor’s surface (as found in Bayer pattern sensors) are part of the sensor package and optical stack; they funnel light into each photodiode and define spectral sensitivity.

These structures mean that maintaining a small air gap or clear glass cover above the sensor is essential – any contact or residue on the sensor surface can disturb the finely tuned optical path. Understanding that the sensor is effectively an array of tiny light-sensitive capacitors helps designers appreciate the need for a clean, well-aligned, and protective packaging environment around the sensor.

Integrating Sensors into the Optical Stack

Integrating an optical sensor into a product means building an optical stack of lenses, filters, and spacers that focus and modify light onto the sensor in the desired way. The design must account for several optical parameters that determine whether the sensor and lens will work together optimally:

Field of View (FOV)

The field of view is the angular cone of the scene that the sensor sees through the lens. It is determined by the combination of sensor size and lens focal length. Generally, FOV (diagonal) ≈ 2 * arctan (sensor diagonal / 2) / focal_length). For a given sensor, a shorter focal length (wide-angle lens) gives a wider FOV, and vice versa. When integrating, one must ensure the required FOV for the application is achieved by selecting an appropriate lens focal length for the sensor size.

_{Field of view conceptually.  Creative Commons Source}

_{Various camera fields of views with different lenses}

Equally important, the optical stack (any protective cover or filter) should not restrict the FOV. For instance, if a filter or cover glass is too small or placed too far from the lens, it could clip the outer rays and reduce the effective field. Typically, optical designers will specify a required clear aperture for any window or filter in front of the sensor, to accommodate the chief rays at the edge of the FOV. The packaging engineer should confirm that the cover glass or filter size is sufficient to avoid vignetting at the widest field angle. They must take into account transitions through the various media and their effect on refraction.

Additionally, very wide FOV systems (like fisheye lenses) have rays coming in at extremely shallow angles relative to the sensor plane; this can exacerbate CRA issues and also demand very precise edge sealing to avoid light leaks around the sensor. In summary, achieving the desired FOV involves matching sensor format and lens focal length, and then ensuring nothing in the package geometry unintentionally crops the field.

Image Circle Diameter

The lens’s image circle is the diameter of the area in the image plane where the lens produces an image with acceptable illumination and sharpness. This must at least cover the sensor’s diagonal dimension. If the sensor lies outside the lens’s image circle, the corners will be dark (vignetting) or unfocused. Lens manufacturers often quote a nominal image circle corresponding to say 50% relative illumination at the edge, but the usable image can extend a bit beyond that.

A common definition of “true” image circle is the diameter at which the lens’s relative illumination falls to 10%. Designers should ensure the sensor diagonal is comfortably inside the 100%–10% illumination zone of the lens. In other words, choose a lens specified for at least the sensor size or larger. Using a lens with a much larger image circle than the sensor is optically fine (it may even improve corner performance since the sensor only sees the well-illuminated central portion), though it can make the module larger than necessary.

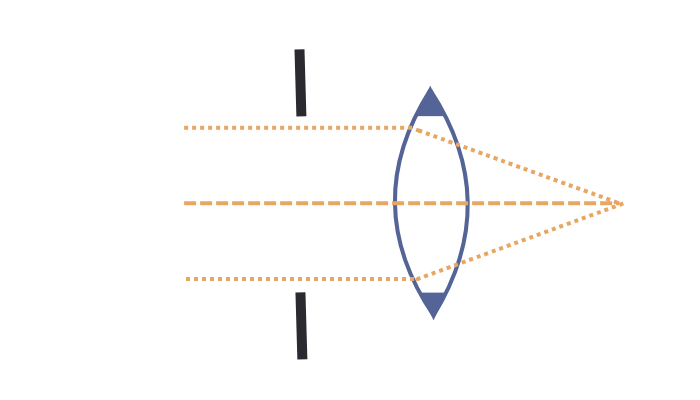

_{Diagram of an optical path with aperture restricting light entering lens to avoid distortion region.}

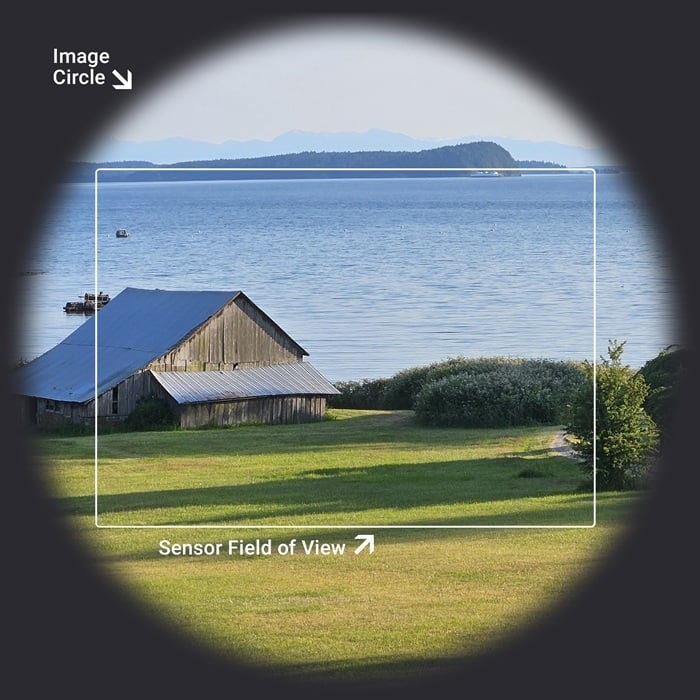

_{An image circle formed inside a camera.  The sensor field of view is within the boundaries of the circle.}

Using a lens with too small of an image circle will definitely cause dark, blurry corners – something to avoid in any quality design. As a rule of thumb, check that the lens format (1/4”, 1/2”, etc.) is equal to or larger than the sensor format, to ensure coverage of the sensor. If a lens’s image circle is only equal to the sensor diagonal, leaving a little design margin is wise to account for assembly tolerances and “true” image circle being slightly larger than nominal.

Back Focal Length (BFL)

Back focal length is the distance from the last optical surface of the lens to the focal plane (the sensor) when the lens is focused at infinity. In practical terms, it’s how far behind the lens the sensor needs to be positioned to achieve focus. Integrating a sensor with a lens requires that the package or housing sets this distance accurately. If the sensor is even one micron off the correct BFL, the image may be defocused. Maintaining the correct sensor-to-lens spacing is thus a top priority in packaging.

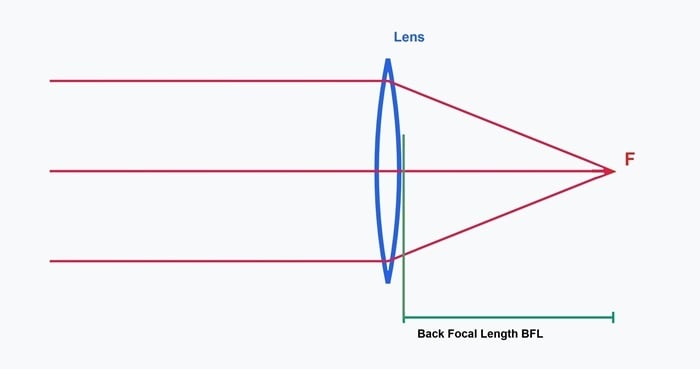

_{Back focal length (BFL) is the distance between back of the lens and the focal point}

Lenses often come with a mechanical barrel or holder that seats onto the sensor package or PCB; shims or precision mounts might be used to dial in the exact spacing. In active autofocus systems, this distance is adjustable, but in fixed-focus modules (common for compact devices), the BFL must be fixed to tight tolerances (often within ±10 µm). Packaging engineers must consider the stack-up of sensor package height, any cover glass thickness (which can optically add to focal distance if between lens and sensor), and adhesive thickness. The goal is to set the sensor at the lens’s focal plane for the intended object distance (usually infinity focus for cameras).

Additionally, the sensor must be mounted parallel to the lens (minimizing tilt) to keep the entire field in focus. BFL constraints also influence lens selection – for example, some wide-angle lenses have very short BFLs to achieve a low profile, which may necessitate wafer-level packages or placing the sensor die very close to lens elements. Always verify that the sensor package and any cover glass can accommodate the required BFL from the chosen lens design.

Chief Ray Angle (CRA)

The chief ray angle is the angle between the lens’s principal optical axis and the chief ray (the ray going through the center of the aperture stop) that strikes the sensor. For off-center pixels, light comes in at an angle – and as cameras get thinner, lenses bend light more aggressively, leading to larger CRA values (smartphone camera sensors often see CRA ~25–30° or more).

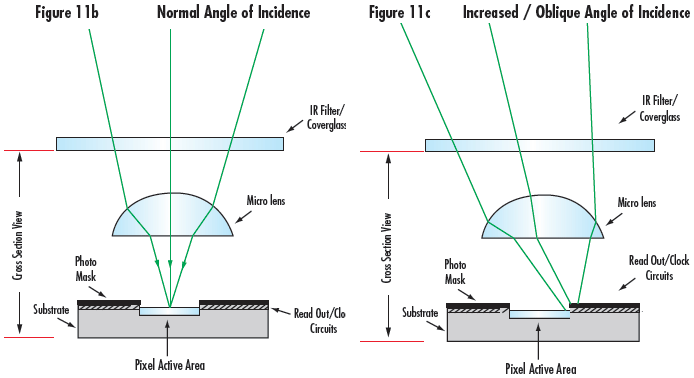

Why is CRA critical? Modern image sensors have micro-lenses atop each pixel that funnel light into the photodiode; these micro-lenses are optimized for a certain range of incident angles. If the lens’s CRA is too large for what the sensor can accept, the peripheral pixels may suffer vignetting (darkening) or color shifts because light misses or only partially hits the photodiodes. It is therefore essential to match the lens CRA to the sensor’s designed CRA. Sensor and lens datasheets usually specify CRA. A mismatch – for example, using a lens with very high chief ray angles on a sensor not designed for it – can cause image shading and blur at the corners.

Low-profile lenses (short focal length, very thin) inherently have high CRA because a low total track length forces steeper light angles; optical designers find it hard to force a low-CRA design in a very thin module. In practice, sensor manufacturers sometimes customize micro-lens placement (shifting them off-center) for high-volume customers to accommodate extreme CRA. For most projects, however, engineers must pick a lens that stays within the CRA that the sensor can handle. Lens CRA and sensor CRA must align to fully utilize pixel area without shadowing or color fringing.  -

_{Chief Ray: An arbitrary light path traveling through the center of the lens.}

_{Comparison of the angle of the Chief Ray, directly in front of lens and at the extent of the sensor field. https://physics.stackexchange.com/questions/421429/how-do-cra-chief-ray-angle-and-fov-field-of-view-affect-one-another}

Lens Selection and Spacing

The choice of lens entails not just focal length and FOV, but also considerations like lens distortion, F-number (aperture), and how the lens is mounted. For integration, one must pick a lens assembly (which could be a multi-element lens stack) that fits in the available volume and meets imaging requirements. Lens spacing refers to how the lens (or multiple lens elements) is positioned relative to the sensor and to each other.

Many camera modules use a lens barrel with threaded or press-fit lenses that can be adjusted in height during focus calibration. Others, especially wafer-level optics, have lenses bonded at fixed spacing. The packaging must hold the lens in the correct lateral alignment (optical axis centered on the sensor) and correct axial position (focus). Often, manufacturers provide a lens module (lens barrel + holder) that mates with the sensor package or PCB. The integration engineer should pay attention to tolerances here: the lens’s optical axis must intersect the sensor center within a small margin (often within a few tens of microns), otherwise one side of the image may be blurrier (due to tilt), or the image may be cropped.

If using separate lens elements, their spacing and tilt are usually handled by an optical barrel or housing – ensure that the component is robust and precisely made. In custom designs, consider how to assemble and actively align the lens spacing. For example, one approach is to use a temporary imaging setup (actively observe the sensor output) to tweak the lens position for best focus before curing adhesive – more on this in the alignment section. Lastly, lens selection includes choosing materials (plastic vs glass elements).

Plastic lenses are lighter and can be molded with mounting features, but may introduce more thermal focus shift; glass lenses are stable but heavier and often require a precise mount. The packaging must accommodate these characteristics (some modules even use spring suspensions or shims to adjust spacing with temperature). In short, select a lens that fits the sensor and mechanical constraints, and design the mount/spacer so that the lens can be held at the exact focus position with minimal shift or tilt.

_{Example configuration of a lens array.}

Filter Selection and Placement

Most optical sensor stacks include one or more filters to tailor the light reaching the sensor. Common examples are IR-cut filters (to block infrared light if using a visible-light sensor, ensuring color accuracy), photopic filters (to mimic the human eye response, often used in ambient light sensors), and diffusers.

Attaching the Optical Stack to the Sensor

Designing how the lens and optical components attach to the sensor or its PCB is as critical as the optical design itself. This step ensures the theoretical performance is achieved in the actual product. Key aspects include alignment methodology, bonding techniques, mechanical stability, and environmental sealing.

Alignment of Lens to Sensor

Achieving proper alignment means the sensor is positioned precisely relative to the lens in x, y, and z axes, as well as in tilt and rotation. There are two broad approaches: passive alignment (relying on mechanical features and tolerances) and active alignment (using feedback from the sensor output to fine-tune position).

High-performance camera modules often use active alignment, where the lens position is adjusted while monitoring the sensor’s image until focus and centering are optimal, then the lens is fixed in place. This compensates for small sensor placement or lens machining errors. Active alignment equipment can adjust multiple axes (e.g., tip, tilt, focus, and lateral centering) with micron precision. Precise active alignment of optics and the sensor is essential in modern high-resolution camera production to utilize full lens and sensor performance.

For less demanding applications or larger pixels, a well-designed passive alignment can suffice. This typically involves accurately registering the sensor on the PCB (using fiducials or mechanical stops to ensure its center and rotation align with the lens mount), and using a lens holder that self-locates. Sensor-on-PCB registration means the sensor chip or package is placed on the board with tight position tolerances – often achieved by pick-and-place machines and fiducial marks.

The lens mount (which could be a plastic or metal barrel) is then either molded with reference surfaces or has adjustment features (like screw threads). In a single-axis assembly, one might only adjust the focus (lens-to-sensor distance) and assume the lateral alignment is taken care of by mechanical mating features. In multi-axis active alignment, the assembly process will move the lens in X-Y until the image center aligns and adjusts tilt to maximize corner focus, etc., before fixing.

Whichever method is used, it’s vital that once aligned, the components stay put. Often, manufacturers design mounting tabs or reference planes on the PCB or package so that a lens holder can be glued or screwed in a reproducible position. For instance, a common approach in compact camera modules is to use a threaded lens barrel: during manufacturing, the lens is screwed in/out to find the best focus (active alignment), then adhesive is applied to lock the thread in place.

Other methods include precision pin-and-hole alignment or even soldering the lens housing (if metal) to the board. The alignment tolerance for high- resolution sensors can be a few microns for centering and a few tens of arc-minutes for tilt. Thus, consider incorporating adjustability into the design or specify tight fabrication tolerances for any one-shot assembled parts. Finally, note that alignment isn’t solely about image focus – in stereo camera systems or sensors with multiple elements, alignment between sensors is also important, but that goes beyond single-module packaging.

_{Example of various alignment methods}

Mechanical Robustness & Stress Mitigation

Once the optical stack is attached, the whole assembly must withstand mechanical stresses from normal use (drops, vibration, thermal expansion, etc.) without the optical alignment degrading. Several design choices contribute to robustness.

Humidity and Fogging Mitigation

Environmental sealing is crucial for optical packaging because even minimal fog or condensation can ruin an optical sensor’s function. There are a few strategies to handle humidity: fully sealed systems, vented systems, and use of desiccants or hydrophobic coatings.

A sealed optical module typically has a perimeter seal (like an adhesive or gasket) around the sensor and lens interface, making the interior an enclosed cavity. This can keep dust and moisture out – but if moisture does get trapped inside during assembly, it can condense later. Therefore, sealed modules are often assembled in controlled low-humidity conditions, sometimes with a nitrogen or dry air purge.

High-end camera modules might even be hermetically sealed, though most use an epoxy or silicone perimeter seal, which is not 100% hermetic but still very effective. To combat residual moisture, tiny desiccant packs or tablets are sometimes placed inside larger optical housings (common in security and automotive cameras). These absorb moisture over the product's life. However, studies have found that relying solely on desiccants may be less effective than other methods in the long run.

Vented designs take a different approach: instead of completely sealing, they allow the enclosure to breathe through a membrane or vent that blocks liquid water and particles but lets water vapor escape. Membranes are an example – a membrane is installed on a small opening in the camera housing. This equalizes pressure (preventing vacuum or pressure buildup that can suck in moisture) and lets humidity gradually diffuse out.

Another tactic is anti-fog coating on the inner surfaces of cover glass or lenses. These hydrophilic coatings can spread any condensate in a thin transparent film instead of droplets, maintaining clarity. Some modules also use heating elements (in larger systems) to keep optics above the dew point.

But, for most compact sensors, the primary methods are controlling internal moisture via sealing, venting, and desiccants. An example from automotive cameras: they often have a seal and a small desiccant sachet, whereas outdoor security cameras might rely on a vent to purge moisture over time. The packaging engineer should decide based on the environment: if the product faces wide temperature swings (which can draw moisture in and out), a vent might be safer to avoid pumping moisture past seals.

If the product must be completely water-tight, then a sealed and desiccated approach is needed, with careful initial drying. In all cases, preventing fogging also means avoiding materials that outgas volatile compounds, since those can condense as a foggy film on lenses (harking back to using low-outgassing adhesives and plastics). Keep the internal air clean and dry, and the sensor will literally have clear vision.

_{Condensation builds up on a pair of glasses}

Thermal Management in Optical Sensor Packaging

Optical sensors and their supporting circuits can generate heat, and they are also affected by external temperatures. Managing heat is crucial to keep the sensor functioning within spec and to maintain image quality (sensors can exhibit more noise at high temperatures, and optical focus can shift due to thermal expansion). Thermal management in optical sensor packaging involves both material choices and added cooling features.

Final System Considerations

When the optical sensor package is designed, engineers should take a step back and consider a few final system-level aspects. These often spell the difference between a design that works on paper and one that excels in the field:

Material Choices and Compatibility

Selecting the right materials for every part of the optical package is fundamental. This includes optical materials (glass, plastics for lenses), structural components (metals, high-performance polymers), and even coatings. Materials should be chosen for both performance and practicality.

For instance, stainless steel might provide a robust lens holder but could be too heavy or hard to machine on a small scale.  So, anodized aluminum or an injection-molded plastic might be used instead. If plastics are used for lens mounts, ensure they are dimensionally stable (some high glass-fill polymers have lower creep and CTE). If using adhesives, consider their interaction with materials: e.g., some optics are coated with anti-reflective layers that certain adhesives could damage or not adhere to.

Also be mindful of chemical compatibility – certain epoxies or outgassing from one component can fog a polycarbonate lens or leave residue on a sensor. Using proven material combinations from known camera module designs is wise (for example, an LCP holder with a UV-cure epoxy and glass lenses is a known good combo). Material choice also affects regulatory compliance (like ROHS, etc.) if that’s a concern.

Another big factor is the electrical and thermal considerations of materials. If the sensor package needs to be electrically insulated, avoid metals that might short something (or ensure proper isolation). Conversely, a metal can double as EMI shielding, which may be beneficial. In some high-end sensors, the package includes a metal shield or frame that not only stiffens it but also grounds and shields against electromagnetic interference.

Each material in the stack – sensor PCB, solder, underfill, lens mount, etc. – should be vetted for operating temperature range and lifespan. It’s not uncommon to encounter, for example, a perfect optical plastic that unfortunately absorbs moisture and swells – obviously problematic for maintaining focus. Thus, the final design should use materials that are compatible with each other and with the operating environment, both optically and mechanically.

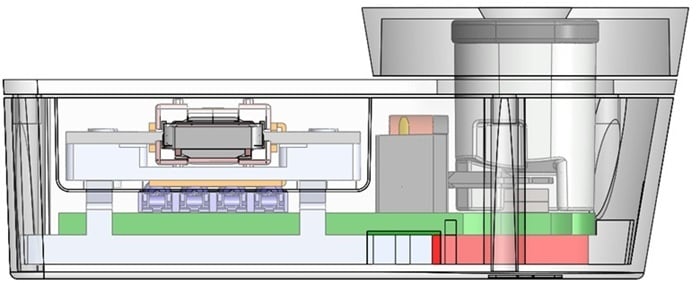

_{Example of the various components of an optical system}

Stacking Tolerances and Yield

The optical stack and packaging involve many parts coming together: the sensor die in its package, the PCB, the lens assembly, spacers, adhesives, etc. Each of these has manufacturing tolerances. It’s critical to perform a tolerance analysis – essentially an error budget – for the whole assembly.

For example, the sensor might be mounted on the PCB within ±20 µm of nominal center position; the lens barrel might have ±10 µm play in its attachment; the focus distance might vary ±30 µm due to adhesive thickness variation. When summed up (worst-case or statistically), do these still keep the lens focus within the depth of field and the image centered within an acceptable range? If not, you may need tighter part specs or an adjustment step in assembly.

Many manufacturers address this by an active alignment step (which can correct small errors), but even then, designers need to ensure that once aligned and glued, components won’t shift out of spec due to curing or later thermal/mechanical stresses.

Design for manufacturability plays a role here

Simplifying the optical stack (fewer parts) can reduce stack-up error sources. Using precision alignment features (like pins or fiducials read by machines) can ensure more repeatable builds. It’s also wise to define inspection points – for instance, after lens bonding, measure a sample of modules for focus and tilt to verify the process is hitting targets.

Stacking tolerance analysis often reveals that one particular dimension is the tightest “choke point” – maybe the sensor height above PCB is highly critical. In such cases, you might insert extra controls (like using an epoxy underfill of known thickness or adding a shim of fixed size).

The end goal is to achieve high yield in production – meaning most units meet performance specs without manual rework. By designing tolerances properly, you avoid a situation where only a fraction of assembled modules pass focus or image quality tests. Given the small scales involved, even microscopic differences can matter: for a fast F2.0 lens, the depth of focus (acceptable sensor movement) might be only a few tens of microns. So, ensure your process and design can reliably hit that window.

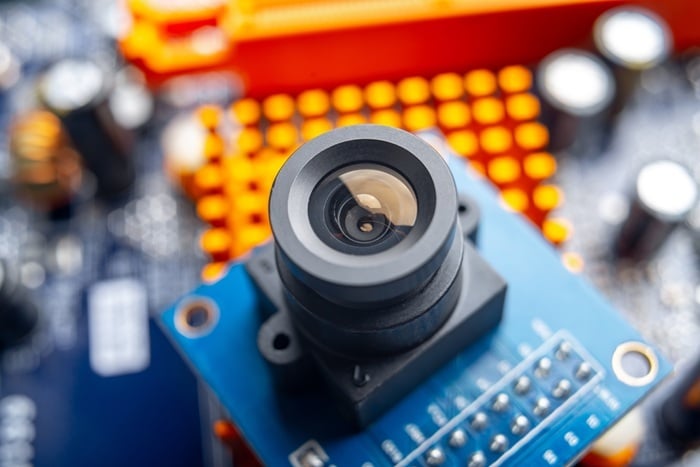

^{Camera with lens on electronic integrated circuit board}

Shock and Drop Resistance

Finally, consider the brutal reality of real-world usage: devices get dropped, banged, left in hot cars, splashed with water, and more. Optical sensor packages must be rugged enough to handle these without failing or requiring realignment.

The Path to Robust Optical Systems

In essence, by the time the design is finalized, it should be robust in simulation and practice; able to take the knocks and environment of its intended application. Engineers might say “packaging is done when there’s nothing left to remove” – implying simplicity – but also when nothing needs to be added to pass all the tests. If you find yourself adding tape and foam in the last week before production to pass drop tests, it’s a sign the packaging design wasn’t fully ironed out. It's better to have those features deliberately engineered in from the start.

Optical sensor packaging is a multidisciplinary engineering challenge. It requires understanding optical principles; it demands precision mechanical engineering for alignment and stability, and it involves clever use of materials and methods to manage the environment and heat. By keeping the core concepts outlined above in mind – from maintaining the correct focus to choosing the right glue – designers can create sensor packages that deliver optimal performance to the end user, with images in focus, signals clear, and no surprises over the device’s lifetime. The optical stack, when properly packaged, becomes an integral and reliable part of the user experience.
