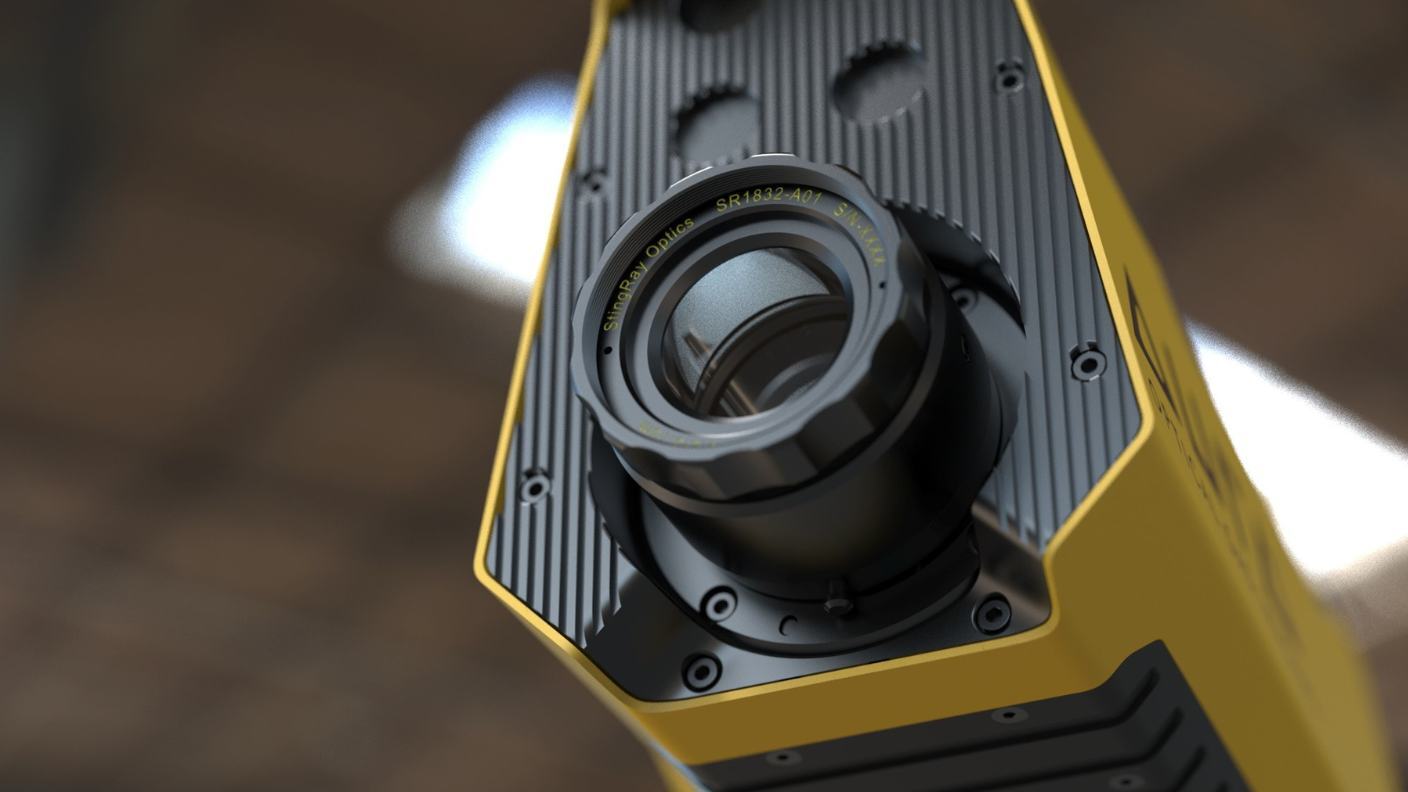

Mechanical Robustness in Optical Sensor Housing Design

Optical sensor packages face a fundamental challenge: they must maintain precise optical alignment while surviving the mechanical stresses of real-world use. A fraction of a millimeter shift can destroy image quality, yet these delicate assemblies must withstand drops, vibration, temperature cycling, and years of use. This article explores the engineering approaches that ensure an optical sensor housings remain both optically precise and mechanically robust.

The Foundation: Adhesives and Bonding

The choice of adhesive or bonding method to attach lenses, filters, or housing has enormous impact on both optical performance and reliability. Unlike general-purpose adhesives, optical adhesives must meet stringent requirements that go beyond simple bonding strength.

Material Requirements

Optical adhesive must be dimensionally stable, clear, and low-outgassing. A good optical adhesive will cure with minimal shrinkage (to avoid shifting the lens as it sets) and maintain clarity over time. It should also have a refractive index close to the materials joined if it's in the optical path, or at least not cause reflections. Specialized UV-curable epoxies are commonly used to bond lens barrels because they can be fixtured and then cured in seconds once alignment is correct. These adhesives are formulated to be optically clear and low-outgassing to prevent fogging or clouding of the lens assemblies.

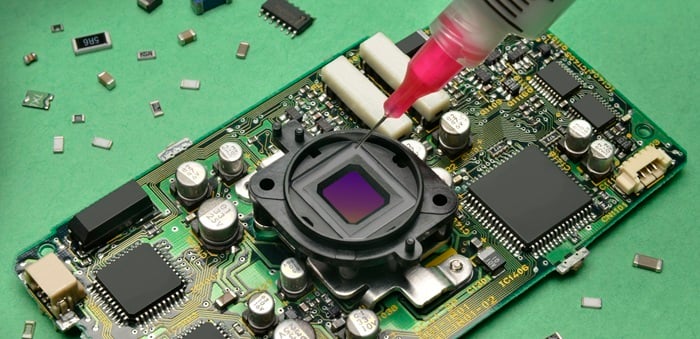

_{Thermally conductive epoxy applied to PCB.  Image courtesy of Masterbond}

Low outgassing is critical – volatile components from glue can deposit as a film on the lens or sensor over time, degrading performance or damaging electronics. Using adhesives with aerospace or camera-module grade outgassing specs (often tested per NASA or MIL standards) is recommended.

Choosing right adhesive

Thermal and Mechanical Properties

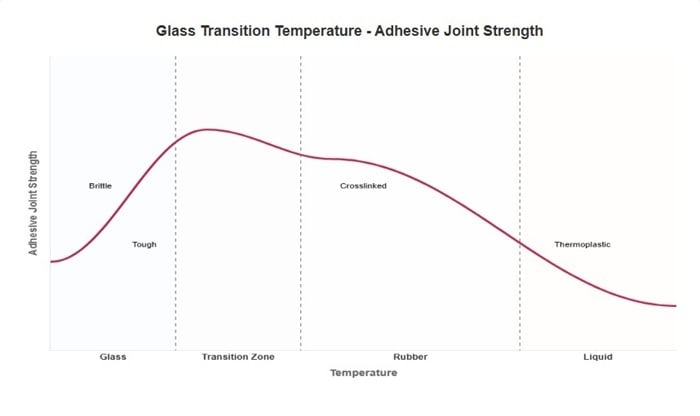

Another critical factor is mechanical strength and Tg (glass transition temperature). The bond needs to survive heat and mechanical stress. Glass transition temperature is the temperature at which an adhesive softens; a higher Tg means the adhesive stays rigid at elevated temperatures. If an adhesive's Tg is too low, the joint might creep or move under heat (e.g., a hot summer day or during device operation). Many camera module epoxies have Tg well above 100°C.

The adhesive should accommodate differences in thermal expansion – some formulations are slightly flexible (with lower modulus) to absorb stress, which can be good for shock but might allow tiny movement. Others are very rigid, which preserves alignment but might crack under stress. Certain acrylic-based UV adhesives are engineered to be flexible with high impact resistance while still adhering strongly to difficult substrates like LCP (liquid crystal polymer) or nylon. These help the assembly survive vibration and drops.

Application Best Practices

Use adhesives specifically designed for opto-electronic assembly: UV-curing, low shrinkage, clear epoxies or acrylics are popular. Follow proper curing procedures (incomplete cure can outgas or weaken later) and apply in fillets or spots that secure components without squeezing into undesired areas. If adhesive is near the sensor or optical path, ensure it doesn't intrude – some designs use black epoxy around edges for stray light control, but any near the active area must not block light or reflect it.

Mechanical Stress Mitigation Strategies

Once the optical stack is attached, the whole assembly must withstand mechanical stresses from normal use without the optical alignment degrading. Several design approaches contribute to long-term robustness.

Edge protection

Edge protection refers to safeguarding the sensor die or lens edges from chipping or cracking. Many image sensors are bare chips wire-bonded to a PCB (chip-on-board) with only a thin cover glass over the die. If the module is dropped, that cover glass, or even the silicon die edge, could crack unless supported. A common practice is to add a damming frame or epoxy bead around the sensor package edges to secure it. Some designs have a plastic or metal constraint ring around the lens or sensor that takes any shock instead of the glass.

Risky Design

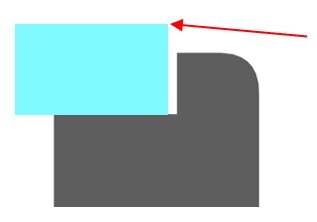

Exposed sharp edge easily damaged

Improved Design

Glass edge below enclosure wall

Edge fully enclosed

For more suggestions on design safeguards visits Designing for Glass in Consumer Electronics.

Types of edge protection

Deflection Control

Deflection control is about preventing the PCB or housing from flexing in a way that disturbs focus. If a PCB bows, it could tilt the sensor relative to the lens. To control this, the area under the sensor might be reinforced (for example, a stiffener or metal plate on the PCB backside). Additionally, keeping the module compact and close to rigid mounts on the device chassis can reduce how much bending it sees. In devices like smartphones, cameras are commonly mounted on their own flexible PCB to decouple them from system level bending.

FLOATING MOUNT DESIGNS

A "floating glass" design specifically refers to mounting a cover glass (or even the sensor's cover) in a way that is not rigidly clamped at every point, allowing slight movement. The cover glass might be bonded with a thin adhesive bead just at the perimeter, which holds it in place but allows the glass to expand or shift slightly relative to the sensor. This prevents stresses (from temperature or drops) from immediately cracking the glass or transmitting shear into the sensor die. The adhesive acts somewhat like a shock absorber. Such floating mounts also help with thermal expansion mismatch – glass and silicon have different expansion rates, so a flexible bond can relieve the stress.

Key Components

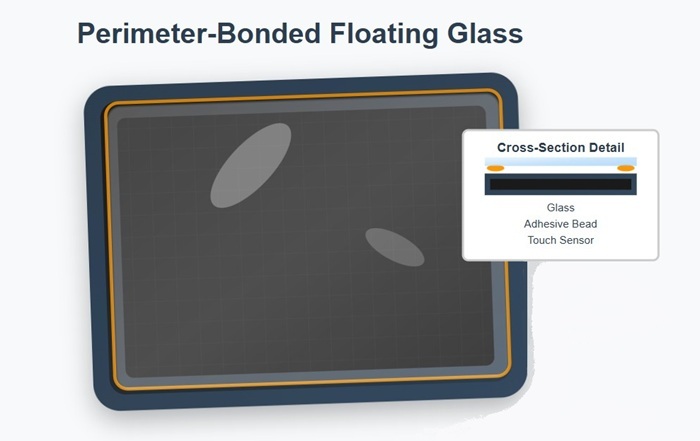

^{Thin adhesive bead at perimeter - bonds glass while allowing thermal expansion
Light blue cover glass - extends almost to device edges for maximum coverage
Touch sensor layer -can accommodate slight glass movement without signal loss
Flexible bonding allows glass to shift slightly with temperature changes}

Redundant Retention

In lens assemblies, mechanical robustness might include adding retention features like screws, clips, or additional glue points. After gluing a lens barrel, some manufacturers add a mechanical clip or a bracket that secures the barrel to the PCB, so the joint isn't purely adhesive in a high-shock scenario. If using a threaded lens barrel, a thread-locking compound or a set screw is wise to prevent any rotation under vibration. Each added measure ensures that the alignment achieved in production remains the same after the product is shipped and used.

_{Lens barrel secured to PCB}

Shock and Drop Resistance Testing

The brutal reality of real-world usage demands that optical sensor packages be rugged enough to handle drops, impacts, and vibration without failing or requiring realignment. Testing and qualification are essential to validate the mechanical design.

Testing Standards

Shock testing (like dropping the device from a certain height onto various surfaces) and vibration testing (for automotive or aerospace) are standard qualification tests. A well-designed package might be specified to survive a 1.5 m drop onto concrete in any orientation, or a 500 G shock pulse, without damage or significant performance loss. It's crucial to build prototypes and perform these tests, looking particularly for any evidence of lens movement (did focus shift after the drop?) or sensor cracks.

_{Dropping a phone}

Design for Impact

Some techniques to improve shock resistance include using a small amount of compliant material as a buffer – e.g., a silicone gasket around the lens module inside the product casing can absorb some impact. Potting compounds can also be used: delicate wire bonds on a COB sensor can be covered with a soft silicone gel to cushion them against shock and also to avoid resonance under vibration.

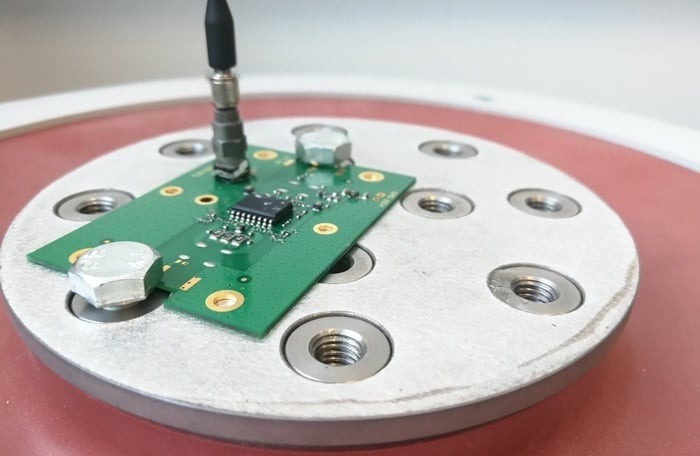

_{PCB Circuit Board prepared for vibration test}

Ensure that heavy elements (like a glass lens) are firmly secured – if a lens comes loose inside a device during a drop, it can wreak havoc. Screws and mechanical locks are preferred for any heavy components rather than relying purely on adhesive under high shock (adhesives can shear off if not designed for shear). Also, verify that any connector or cable attached to the sensor PCB is strain-relieved; a yank on a flex cable shouldn't pull the module out of alignment.

Long-term Fatigue Considerations

A sometimes under-appreciated aspect is long-term fatigue. Repeated small shocks or vibrations can slowly cause screws to loosen or joints to creep. Using thread lockers on screws and proper adhesive curing helps here. Temperature cycling is another test – it can induce expansion/contraction cycles that loosen parts. Designing with a bit of flexibility (no overly brittle large adhesive areas, for example) can allow the assembly to "give" a little under stress instead of cracking.

Design Integration

When designing for mechanical robustness, engineers must think holistically about how forces travel through the packaging. If the device is dropped from a meter, how does the force travel through the structure? Ideally it bypasses the critical lens-sensor gap – perhaps through a sturdy outer frame – and any stress at the sensor or lens bond is minimized by use of compliant materials or reinforcement where needed.

The best designs incorporate robustness from the start rather than adding tape and foam in the last week before production to pass drop tests. This means:

• Selecting adhesives that balance rigidity for optical alignment with flexibility for stress absorption
• Incorporating mechanical retention features that work in concert with adhesives
• Using compliant interfaces where rigid connections would transmit too much stress
• Testing early and often to validate design choices

Building Reliability Through Integrated Design

Mechanical robustness in optical sensor housing is achieved through careful material selection, thoughtful stress management, and rigorous testing. The adhesives must be specialized for optical applications, providing stability without outgassing. The mechanical design must protect delicate components while maintaining precise alignment. And the entire assembly must be validated through real-world testing that simulates the drops, vibrations, and environmental stresses it will face in use.

By integrating these considerations from the beginning of the design process, engineers can create optical sensor packages that deliver consistent performance throughout their lifetime – maintaining focus and image quality despite the inevitable bumps and drops of daily use. The result is an optical system that is not just theoretically precise, but practically robust.
