Explore the latest features of NX CAD in our video series on Siemens December release, NX 2412. These beneficial features include selecting similar edges, using the sketch checker, transfer voids, the flex transition design option, and adding feature groups to reference sets.

Selecting Similar Edges

New in NX 2412, you can now select similar or even identical edges on bodies within your parts in order to complete common operations such as adding blends, with the Select Similar Edges Command!

Sketch checking

New in NX 2412, a Sketch Checking tool available as a toggle in the Sketch Task environment, which allows you to quickly check the integrity of your sketches, making it easier than ever to create robust and fully defined sketch features!



transfer voids

A brand new tool in NX 2412, Transfer Voids, allows you to easily copy complicated enclosed geometry (voids) from one body to another, so that the geometry can be used in more than one design!

flex transition

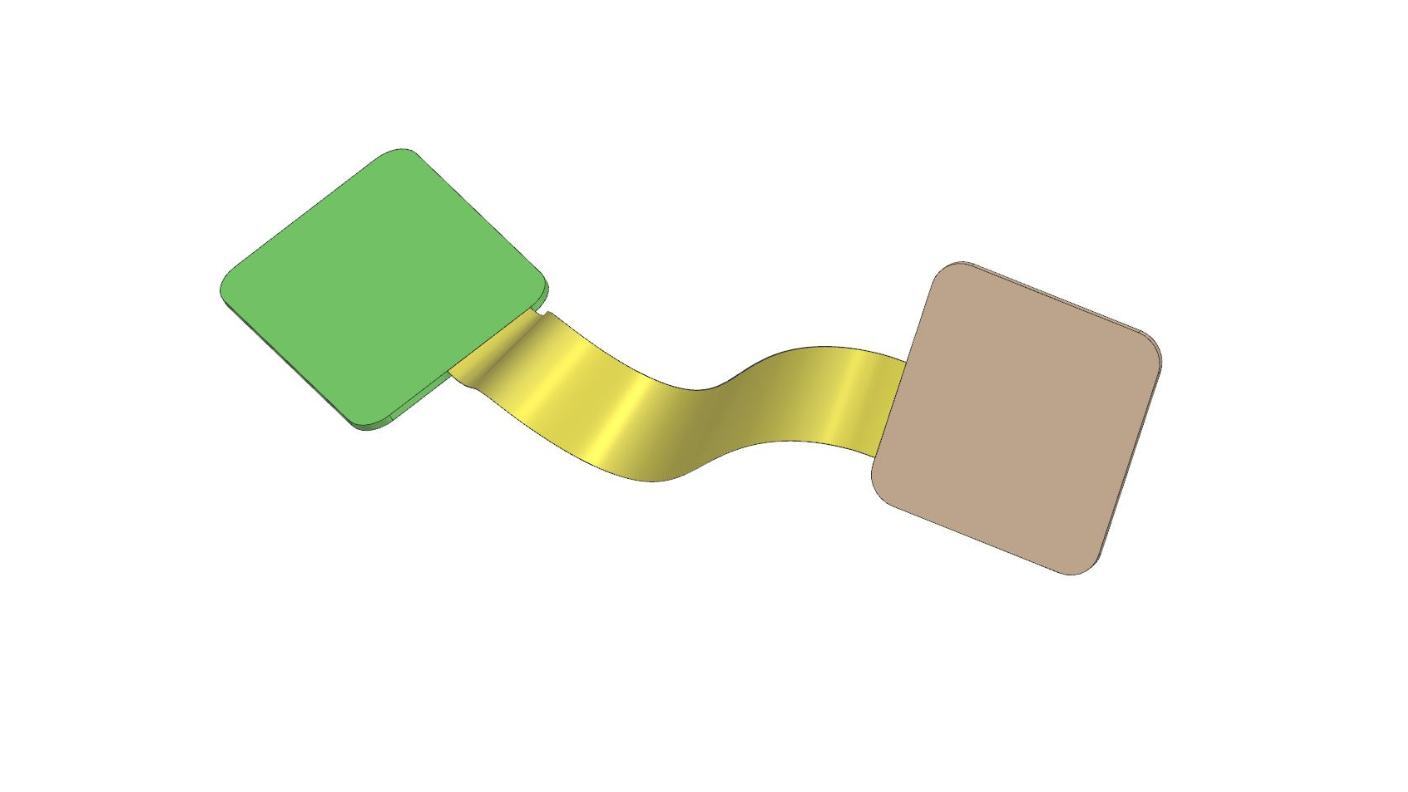

A great Flexible Printed Circuit Design option added to NX 2412 is the new Flex Transition option inside the Bridge Transition tool. This allows you to create accurate forms of flexible cables that are bent and twisted with detail.

Adding Feature Groups to Reference Sets

A great capability now in NX 2412 is the new option to add Feature Groups to Reference Sets within a part. This allows you to easily add many features or bodies at a time, in order to properly display the part at the assembly level.

In the ever-evolving landscape of engineering design, the December 2024 release of NX CAD software, specifically NX 2412, has introduced several cutting-edge features to help in your design workflow.  We hope this review is helpful.
